Sonic Logging Pipe: A Critical Guarantee for Pile Foundation Quality Inspection

In the field of modern construction engineering, pile foundations serve as a vital part of building structures, and their quality directly affects the stability and safety of the entire building. As an indispensable key component in the pile foundation quality inspection process, sonic logging pipes play a pivotal role. This article will conduct an in-depth analysis of the various characteristics of sonic logging pipes, aiming to provide comprehensive and professional knowledge interpretation for relevant industry professionals and readers interested in construction engineering. Meanwhile, through writing that complies with Google optimization rules, it ensures that information can accurately reach the target audience.

1. Basic Understanding of Sonic Logging Pipes

(1) Definition and Nature

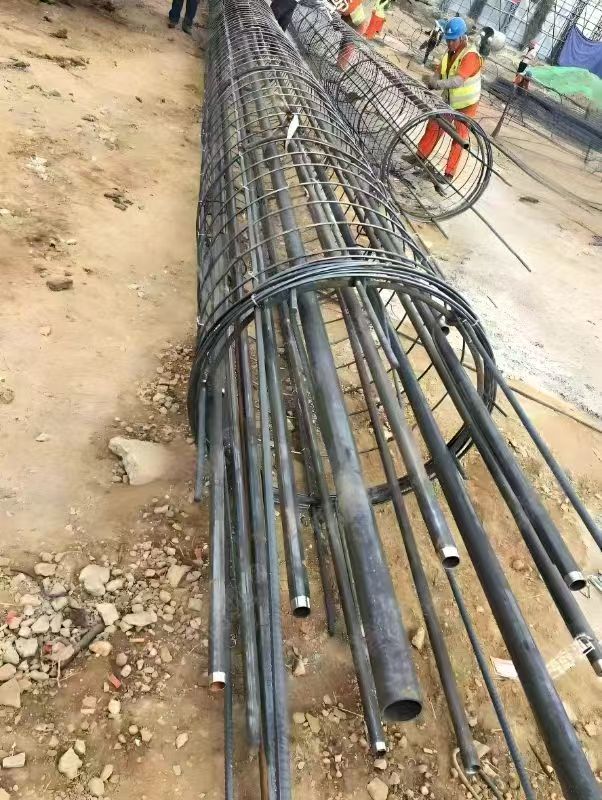

A sonic logging pipe is a type of pipeline specifically designed for the ultrasonic testing method of cast-in-place piles. Its core function is to provide a channel for inspection probes to enter the interior of the pile body, making it a core component of the ultrasonic testing system for cast-in-place piles. From the perspective of material selection, the choice of sonic logging pipes follows the principles of high sound transmission rate, ease of installation, and low cost. Common materials include steel pipes and plastic pipes, each with distinct performance characteristics and applicable scenarios. For instance, steel pipes feature high strength and excellent sound transmission performance, making them widely used in large-scale construction projects; plastic pipes, on the other hand, offer advantages such as light weight and corrosion resistance, making them ideal for projects with strict cost control requirements and slightly corrosive environments.

(2) In-depth Analysis of Working Principle

The working principle of sonic logging pipes is based on the propagation characteristics of sound waves in different media. During pile foundation inspection, sound pulses are emitted from the transmitting transducer. First, they pass through the coupling water to reach the interface between the water and the sonic logging pipe wall. Due to the difference in acoustic impedance, part of the sound energy is reflected and refracted at this interface. The refracted sound energy continues to propagate, passing through the pipe wall to reach the interface between the sonic logging pipe wall and concrete. After undergoing reflection and refraction again, it enters the concrete. Subsequently, it needs to pass through the two interfaces of another sonic logging pipe before finally reaching the receiving transducer.

In this process, the sonic logging pipe forms 4 interfaces. The sound energy transmission coefficient of each interface can be calculated using specific formulas, and the total sound transmission coefficient of the 4 interfaces between the transmitting and receiving transducers directly affects the accuracy of the inspection results. If there are defects in the material or installation process of the sonic logging pipe, additional reflection interfaces (such as air or water gaps) may appear in the sound wave propagation path, which can interfere with the inspection signal and lead to misjudgment.
